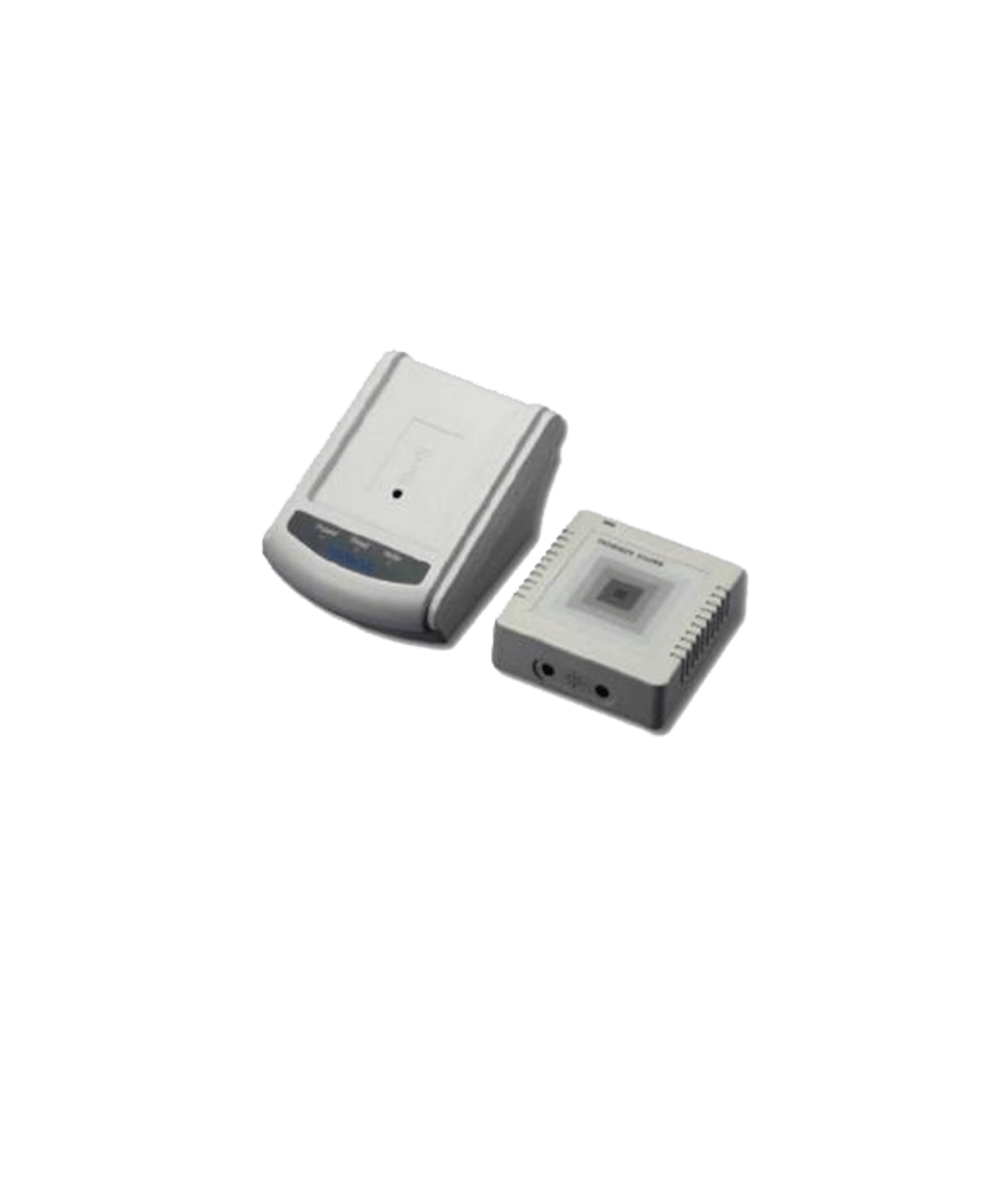

- Cash Card Access Control System: PRW106 + AC906
- PRW106 is used to program/store proximity card with values or amounts.
- AC906 is used for transaction. Once card is read, pre-set
decrement will be deducted from the card and the
new value or amount will be rewritten to it. - Fast data transfer, High data integrity, True anti-collision
AC906
- Access Control Read / Write
- RF Frequency: 13.56Mhz
- RF Distance: 3 cm
- DC Power: 9V / 150mA
- RS232: 19200,N,8,1; Interface : RS232/RS485
- Protocol : GNET PLUS
- Card Type : ISO 14443A Mifare® Class Mifare® PRO Memory : 32KB
- Battery Backup for 1 week
- Dimension (mm) : W79.6 x L84.8 x H25
- ABS housing
PRW106
- Card issuer/programmer read & write.
- Access Control Read / Write
- RF Frequency: 13.56Mhz
- RF Distance: 3 cm
- DC Power: 9V / 150mA
- RS232: 19200,N,8,1; Interface : RS232/RS485
- Protocol : GNET PLUS
- Card Type : ISO 14443A Mifare® Class Mifare® PRO Memory : 32KB
- No battery backup
- Dimension (mm) : W86 x L121.8 x H86
- ABS housing
- Application: Access/ Admission controls, Master and user
authentication control, Time and attendance, Pre-payment, Parking payment, Ticketing, Cinemas prepayment, etc…
